Ẹrọ Idapọ Nla kekere

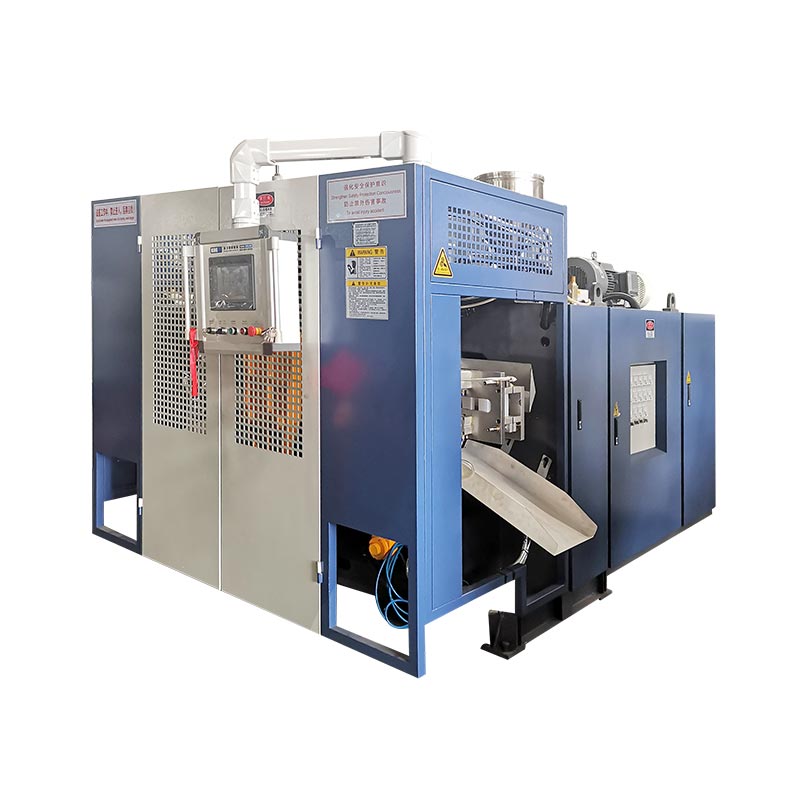

Model:KGH30D

Apẹrẹ pẹlu ibi ipamọ kẹmika rẹ nilo ni lokan, KGH30D jẹ igbẹkẹle 30l ti o gbẹkẹle diẹ ẹrọ ti o kọ silẹ fun iyara ẹrọ iyara 15L Flufẹ. Pipe fun awọn aini ẹrọ ti 25l ṣiṣe, gẹgẹbi awọn ilu 25L ati 30L ati 30L ati awọn iṣẹ agbara ati awọn ifowopamọ o le gbekele. Jẹ ki a alabaṣepọ ati alabaṣiṣẹpọ wa lati ṣẹda ojutu ti o ta rẹ loni!

Iwọn didun: 30LIwuwo: 28.5t

Fi ibeere ranṣẹ

ọja Apejuwe Specification Application

Pipe fun ṣiṣalaye 25l ati 30l kemikali Awọn ilu, ẹrọ ẹrọ yii ṣe idaniloju mejeeji alailagbara ati idiyele-iye, ṣiṣe O ṣe pataki dukia fun eyikeyi laini iṣelọpọ. Pẹlu apẹrẹ ilọsiwaju rẹ ati konge, KGH30d 30L kemikali Nla Cable Creem creem chipping awọn oluse deede lakoko ti o ṣe iranlọwọ fun ọ Ṣiṣe gbigbe ṣiṣe ati dinku awọn idiyele iṣẹ. Alabaṣepọ pẹlu wa loni si Ṣẹda ojutu ti o dara ti o baamu awọn iwulo rẹ pato ati igbelaruge rẹ awọn agbara iṣelọpọ.

Awọn ẹya ati awọn anfani

Mu iṣelọpọ rẹ pọ si pẹlu ilọpo meji wa ni ilọpo meji ti o le jẹ ẹrọ ẹrọ mimu ẹrọ, ti a ṣe apẹrẹ fun awọn apoti to 30L. Pẹlu awọn atunto ti o rọ (2, 3, tabi 4 ti o ni ọpọlọpọ-ku awọn oṣou, lati awọn igi kekere si awọn apoti ṣiṣu ati ilọsiwaju ti o munadoko ati didara daradara.
Apẹrẹ fun awọn ohun elo bii shampulu, ifọṣọ ifọṣọ, ati apoti cosmetis, ẹrọ yii n funni ni iṣelọpọ iyara giga lakoko ti o ṣetọju didara oke-giga. Idapọpọ rẹ ati apẹrẹ lilo iranlọwọ lati dinku egbin ati alekun pọ, ṣiṣe o ojutu idiyele-dodoko-ti o ba pọ si ipadabọ rẹ lori idoko-owo.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH30D
Specifications
1	Max container capacity	30L
2	Output(dry Cycle)	450 PC/HR x 2 PC/HR
3	Machine Dimension(L×W×H)	5.8 M x 4.2 M x 3.8 M
4	Machine weight	28.5T
Clamping Unit
1	Clamping force	300 KN
2	Mold platen size(W×H)	630 MM x680 MM
3	Platen openingstroke	450 MM -1000 MM
4	Platen moving stroke	750 MM
5	Max mold size(W×H)	730 MM -680 MM
6	Mold thickness	480 MM -580 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	180 L/min
7	Average energy consumption	70 KW -80 KW
Extruder unit
1	Screw diameter	100 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	300 Kg/hr
4	Number of heating zone	5 ZONE
5	Screw heating power	20 KW
6	Screw fanpower	0.9 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	280 MM
5	(PE)Accumulator weight	170 MM
