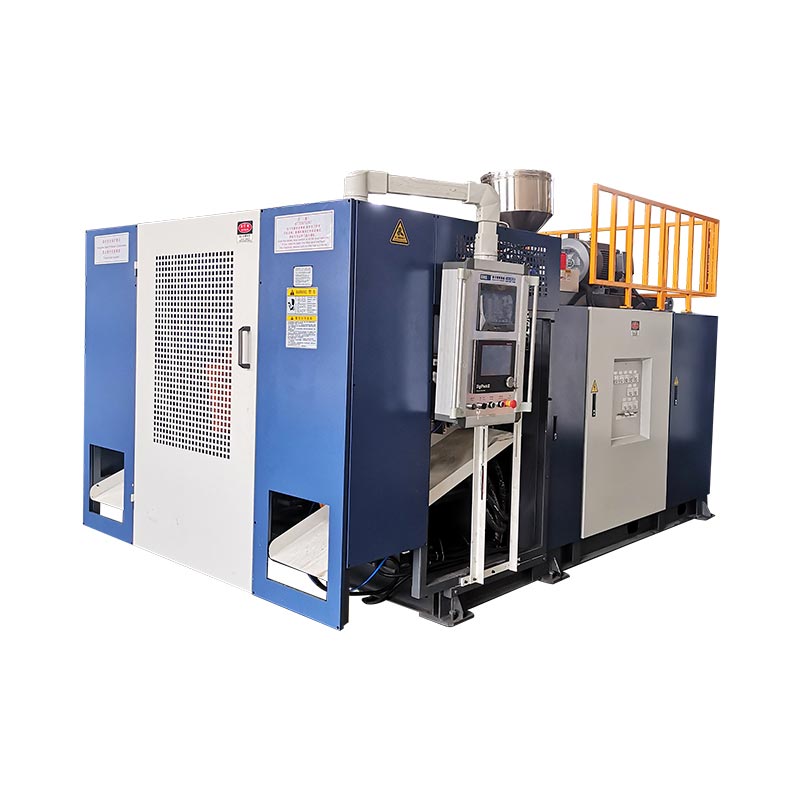

5L ẹyọkan ibudo fẹ ẹrọ ẹrọ lasan

Model:KGB5L

Ni iriri irọrun ati ṣiṣe ti ibudo-ibudo wa sile-sisiwaju ẹrọ imudarasi ẹrọ imu. Ti ṣe apẹrẹ fun awọn apoti 5L, yii 5L ẹyọkan ti o wa idoti nfunni ni awọn atunto ni asekale, pẹlu ifiṣootọ 2 iho, lati pade awọn aini ẹrọ rẹ pato.

Iwọn didun: 5LIwuwo: 3.0t

Fi ibeere ranṣẹ

ọja Apejuwe Specification Application

Boya o nilo idaduro iboju ti 5l igbẹhin tabi nilo lati ṣe adaṣe si iyipada awọn ibeere ti ko ni aabo ati ṣiṣe ti ko ni aabo ati ṣiṣe. Kan si wa loni lati ṣawari idiyele ifigagbaga wa ki o ṣe iwari bi ẹrọ yii le gbe awọn agbara iṣelọpọ ga si awọn agbara iṣelọpọ rẹ.

Awọn ẹya ati awọn anfani

Daradara koko-ọrọ ti o tumọ si ẹrọ yiyipada ẹrọ, ni ipese pẹlu ajekiọwẹ ti o tọ ni idaniloju lati rii daju awọn iṣẹ yiyi ṣiṣẹ daradara.
● Awọn ori ti o ku jẹ apẹrẹ pẹlu eto ifunni ti a kaga, mimu pinpin awọn pinpin ohun elo fun didara ọja ti a mu.
● Awọn iṣakoso iṣakoso itanna ti ilọsiwaju ni agbara nipasẹ Mitsubishi PLC, ati pe o wa pẹlu awọn bọtini Afori ominira, gbigba awọn oniṣẹ lati ṣe awọn atunṣe iyara ati awọn atunṣe deede ati awọn atunṣe deede pẹlu irọrun.
Darapọ pẹlu agbara ọja ti o pọju ti 5L, o duro bi yiyan oke fun iṣelọpọ iwọn iwọn kekere ti awọn sokoto lati 2l si 5l.
Ni awọn ofin ti awọn abuda ọja, o nfun awọn aṣayan ara pẹlu ẹyọkan-Layer, ilọpo meji, awọn ẹya-Layer, bakanna bi awọn iyatọ sihin lati pade awọn ibeere ọja to lagbara lati pade awọn ibeere ọja onipin.
● Awọn ohun elo Hydraulic Awọn ẹya ti o yatọ si ti o jẹ giga ati ṣiṣe esi iyara, gbigbe igbelaruge ṣiṣe iṣelọpọ iṣelọpọ lapapọ.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
