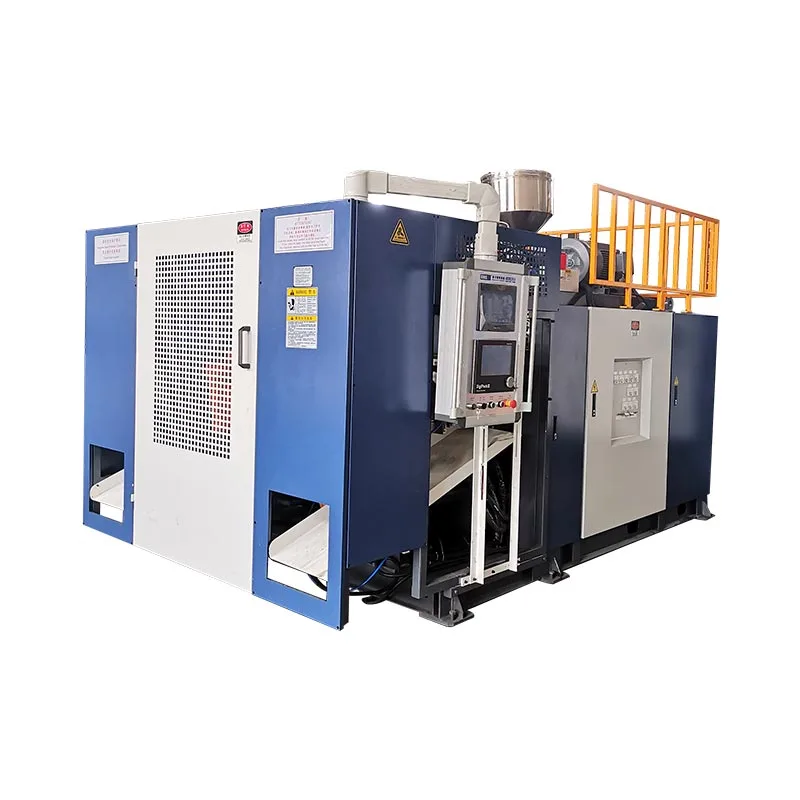

5L Double Ibusọ FUP FOLING Ẹrọ

Model:KGB5D

Mu iṣelọpọ rẹ pọ si pẹlu wapọ ṣiṣu ṣiṣu ṣiṣu lu ẹrọ ṣiṣe. Ẹrọ giga-giga nfunni awọn atunto iyipada, pẹlu oso 2, 3, tabi 4 ti o ku siwaju, lati gba kan jakejado ibiti o ti awọn titobi wei.

Iwọn didun: 5LIwuwo: 5.2t

Fi ibeere ranṣẹ

ọja Apejuwe Specification Application

Lati igo iwọn kekere lati awọn apoti 5L nla, yii ni ilọpo meji kọwe ẹrọ ẹrọ imudaniloju Agbara to munadoko ati didara pipe. Apẹrẹ fun awọn ohun elo pupọ, Pẹlu ifọṣọ ifọṣọ fifin fifin awọn solusan ẹrọ, o Konels olonisafefefefe ati mu pada ipadabọ rẹ lori idoko-owo.

Awọn ẹya ati awọn anfani

● Oni-ilọpopo-kekere-Stark Cent, lilo buffer scugle fve fun iboju gbigbe, lilo ati idurosinsin
Ọmọ ti o ku ni o dagba ni fọọmu ifunni ile-iṣẹ
Iṣakoso Iṣakoso Iṣakoso itanna Gba iṣakoso Pltishishi PASTBILI, ati awọn bọtini Afowo ifosiwewe ko dẹdaju atunse adaṣe ati atunṣe.
Iwọn didun ọja ti o pọ julọ jẹ 5L, eyiti o jẹ ohun elo mondarge ti o fẹ fẹ fun iṣelọpọ ibi ti o kere ju 2-5l.
Ni ibamu si awọn abuda, o le pin si ẹyọkan apa, Layer Double, Layer mẹta, laini gbigbe, ati bẹbẹ lọ.
● Awọn eto hydraulic ti a gbe soke apẹrẹ oriṣiriṣi, ṣiṣe giga ati iyara iyara

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
