2L ẹyọkan ibudo fẹ ẹrọ mimu

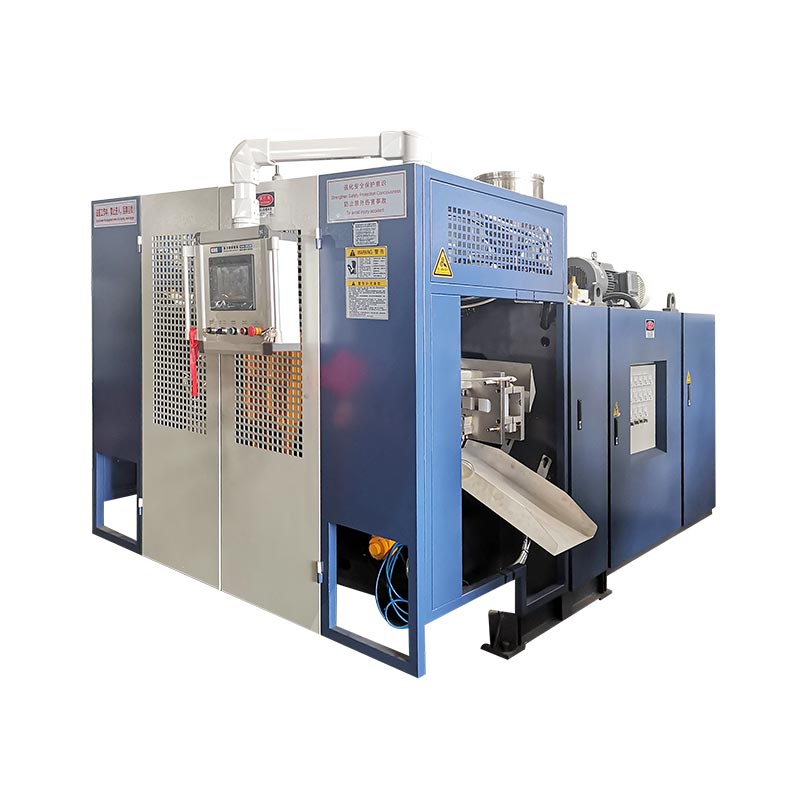

Model:KGB2L

Eyi nikan ni ibudo nikan ni o wa fi ẹrọ ẹrọ silding, o dara fun iṣelọpọ apoti apoti Max 2L, jẹ ojukokoro gaju. O nfunni aṣayan lati yipada si 2, 3, tabi Iṣeduro Olori 4 ti o ku, gbigba lati gba iṣelọpọ ti iṣelọpọ igo fun awọn ẹrọ iṣaro kekere.

Iwọn didun: 2LIwuwo: 2.5t

Fi ibeere ranṣẹ

ọja Apejuwe Specification Application

Irọrun yii pọ si pọsi ojoojumọ, ṣiṣe o ni ojutu to dara fun awọn iṣelọpọ n wa lati ṣe alekun iṣelọpọ lakoko ti o ṣetọju didara ọja giga. Lo ẹrọ kan 2L kan ibudo fush ẹrọ ẹrọ lati gbe apoti igo, ifọṣọ, awọn ọja mimọ ile, ati omi fifọ ile. Fun awọn ipin-nla nla, ro ibeji 5L wa tabi 15l ti o jẹ ki ẹrọ sile ẹrọ pẹlu awọn aṣayan ori.

Awọn ẹya ati awọn anfani

Ibusọ ẹyọkan ti o tumọ si ẹrọ ti n fanimọra mu, ni ipese pẹlu ajekii ti o ni idasita kan ti o daju lati rii daju awọn iṣẹ yiyi ṣiṣẹ daradara.
● Awọn ori ti o ku jẹ apẹrẹ pẹlu eto ifunni ti a kaga, mimu pinpin awọn pinpin ohun elo fun didara ọja ti a mu.
● Awọn iṣakoso iṣakoso itanna ti ilọsiwaju ni agbara nipasẹ Mitsubishi PLC, ati pe o wa pẹlu awọn bọtini Afori ominira, gbigba awọn oniṣẹ lati ṣe awọn atunṣe iyara ati awọn atunṣe deede ati awọn atunṣe deede pẹlu irọrun.
Darapọ pẹlu agbara ọja ti o pọju ti 2L, o duro bi yiyan oke fun iṣelọpọ iwọn kekere ti awọn apoti to wa lati 50ml si 2l.
Ni awọn ofin ti awọn abuda ọja, o nfun awọn aṣayan ara pẹlu ẹyọkan-Layer, ilọpo meji, awọn ẹya-Layer, bakanna bi awọn iyatọ sihin lati pade awọn ibeere ọja to lagbara lati pade awọn ibeere ọja onipin.
● Awọn ohun elo Hydraulic Awọn ẹya ti o yatọ si ti o jẹ giga ati ṣiṣe esi iyara, gbigbe igbelaruge ṣiṣe iṣelọpọ iṣelọpọ lapapọ.

Specifications

serial number	Material PE、PP、PVC、PA...	Mold-moving series
serial number	Material PE、PP、PVC、PA...	Machine model:KGB2L
Specifications
1	Max container capacity	2L
2	Output(dry Cycle)	600 PC/HR
3	Machine Dimension(L×W×H)	3.1 M x 1.7 M x 2.5 M
4	Machine weight	2.5T
Clamping Unit
1	Clamping force	40KN
2	Mold platen size(W×H)	380 MM x430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM x 380MM
6	Mold thickness	160 MM - 300MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	50 L/min
7	Average energy consumption	12-18 KW
Extruder unit
1	Screw diameter	50 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	30 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	7.5 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	11KW
Die head
1	Number of heating sections	3 * 5 ZONE
2	Heating power	3.2 KW
3	1MTMaxdie-pin diameter	90 MM
4	2Center distance of double die head	130 MM
5	2MTMax die-pindiameter	60 MM
