Awọn ẹrọ ṣiṣe ṣiṣe

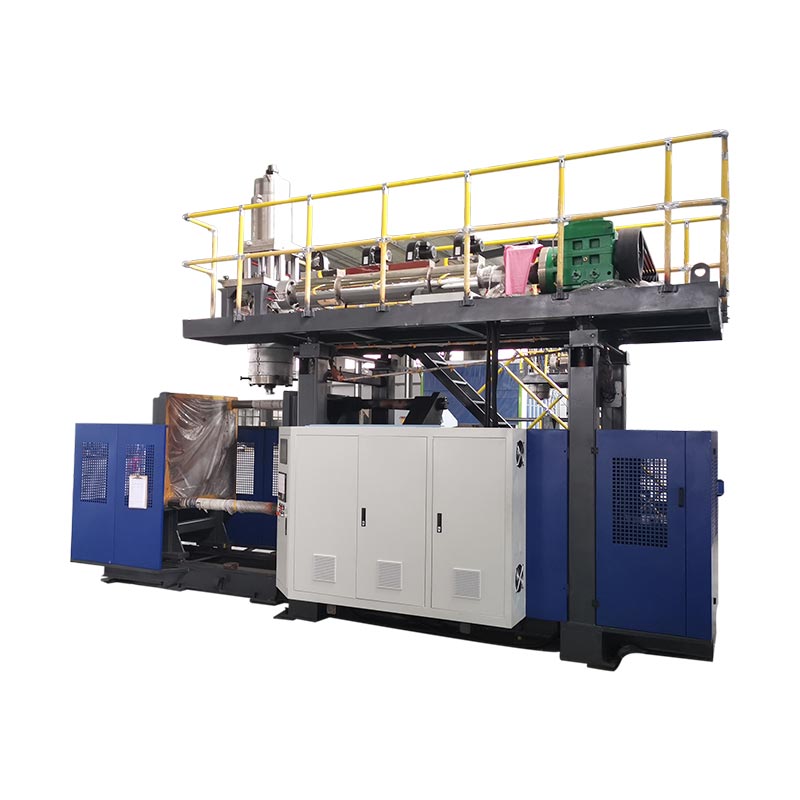

Model:KGB110A-ABS

Yiyipada iṣelọpọ awọn adaṣe rẹ pẹlu KGB110A-AS, Ige-gige-gige-gige-gige-gige-gige-gige-gige-gige-gige-gige-gige awọn ohun elo mimu ẹrọ ti o sọ di mimọ fun awọn ohun elo aifọwọyi ti n fọ awọn ohun elo ẹrọ. Pipe fun awọn apanirun fẹ ẹrọ ṣiṣe mimu nilo bi awọn alawo ati awọn dasibobodu, o ṣe iranlọwọ fun ọ lati dari ọja ọkọ ayọkẹlẹ pẹlu didara giga.

Iwọn didun: /Iwuwo: 25t

Fi ibeere ranṣẹ

ọja Apejuwe Specification Application

Kgbb110a Olupese. Awọn ẹrọ mimu ti n ṣe ẹrọ ṣiṣe ẹrọ pẹlu iwọn lilo giga ati fifun si Ṣẹda pipe dada lati fi akoko ipo lẹhin. Ati ẹrọ adani Platen si ibaamu ile-iṣẹ ti ko kere, fi awọn idiyele idoko-owo pamọ.

Awọn ẹya ati awọn anfani

N walẹ jinlẹ sinu agbara imọ-ẹrọ le pese awọn solusan ọja-agbara giga-ilẹ fun awọn alabara ti o lepa idiyele-iye; Tun le ṣe iṣiro-ilọpo meji tabi awọn ẹya consodote ti ọpọlọpọ-ipele pẹlu iṣẹ adaṣe
Awọn iṣiṣẹ bọtini bọtini ti awọn ẹrọ iṣiro 110A-AB pẹlu eto agbara ati igbẹkẹle hydraulic. Siwaju ati gbigbe agbara iduroṣinṣin ṣe idaniloju Agale ati ṣiṣi ti o lagbara ati ti o munadoko ti expededer, ati paapaa ni iṣelọpọ to dara ati pe awọn ọja didara to dara julọ.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
